非標定制軸承
定制軸承
非標軸承
XR496051
XR496052
非標軸承
定制軸承
非標軸承
JXR637050
XR637050
您好，歡迎來到洛陽亞鈿機械設備有限公司官方網站！
客戶服務熱線0379-80885291
| 型號 | 主要尺寸 | 互換型號 | ||||||

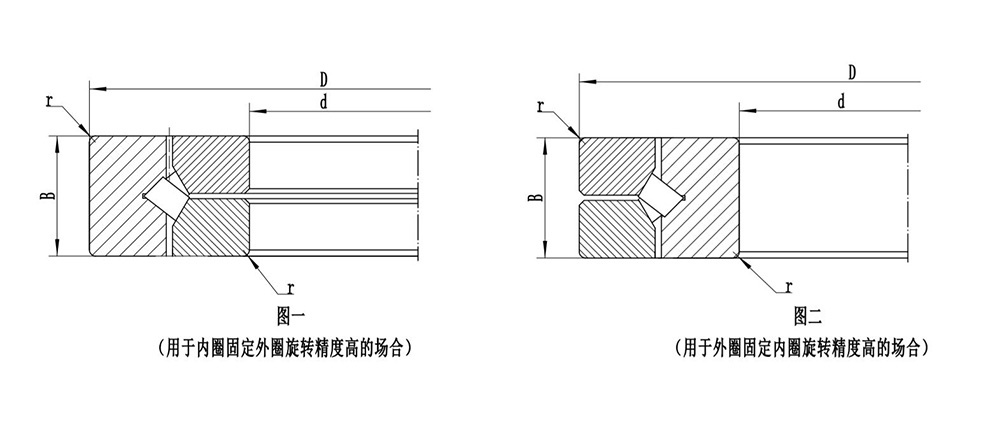

| d | D | B | r | SKF | NACHI | URB | PSL | |
| mm | mm | mm | min | |||||
| 非標定制軸承 | 150 | 230 | 30 | 1 | BFKB353243/HA4 | |||
| 定制軸承 | 160 | 240 | 30 | 1.1 | BFKB353240/HA4 | |||
| 非標軸承 | 200 | 280 | 30 | 1.5 | 200XRN28 | |||
| XR496051 | 203.2 | 279 | 31.75 | 1.5 | 616093A | |||
| XR496052 | 203.2 | 279 | 31.75 | 1.5 | ||||
| 非標軸承 | 240 | 300 | 30 | 1 | BFKB353203/HA4 | |||
| 定制軸承 | 250 | 310 | 25 | 1 | BFKB353212/HA4 | |||
| 非標軸承 | 250 | 350 | 40 | 1.3 | BFKB353215/HA4 | 250XRN35 | ||
| JXR637050 | 300 | 400 | 36.492 | 1.5 | ||||
| XR637050 | 300 | 400 | 37 | 1.5 | 616094A | 300XRN50 | ||
| JXR678054 | 300 | 480 | 60 | 1.5 | ||||
| JXR652050 | 310 | 425 | 45 | 2.5 | BFKB634097 | |||
| XR678052 | 330 | 457 | 63.5 | 3.3 | 615661A | 300XRN50 | PSL912-309A | |
| 350 | 470 | 50 | 3.3 | BFKB353216/HA4 | 350XRN47 | |||
| JXR699050 | 370 | 495 | 50 | 3.3 | ||||
| 400 | 480 | 40 | 1.1 | BFKB353224/HA4 | ||||
| 400 | 550 | 60 | 2.5 | BFKB353219/HA4 | 400XRN55 | |||
| XR736052 | 432.03 | 571.5 | 38.1 | 3.3 | ||||
| XR766051 | 457.2 | 609.6 | 63.5 | 3.3 | 615894A | 0457XRN060 | XD.10.0457P5 | PSL912-308A |
| XR766052 | 424.95 | 614.924 | 65 | 3.3 | ||||
| XR820060 | 580 | 760 | 80 | 3.3 | 615662A | 580XRN76 | XD.10.0580P5 | PSL912-304A |
| XR820061 | 580 | 760 | 80 | 6.4 | ||||
| XR836050 | 600 | 830 | 80 | 6.4 | 600XRN83 | |||
| XRA844050 | 685.8 | 914.4 | 79.375 | 6.4 | ||||
| XR855053 | 685.8 | 914.4 | 79.375 | 3.3 | 615659A | 0685XRN091 | XD.10.0686P5 | PSL912-305A |
| XR855056 | 685.8 | 914.4 | 79.375 | 3.3 | ||||
| XR882054 | 901.7 | 1117.6 | 82.555 | 3.3 | ||||
| XR882055 | 901.7 | 1117.6 | 82.555 | 3.3 | 615895A | 0901XRN112 | XD.10.0902P5 | PSL912-306A |
| XR882058 | 939.8 | 1117.6 | 82.55 | 3.3 | ||||
| 950 | 1170 | 85 | 3 | BFKB353251/HA4 | ||||
| XR889058 | 1028.7 | 1327.15 | 114.3 | 3.3 | BFKB353282/HA4 | 1028XRN132 | XD.10.1029P5 | PSL 912-307A |
| XR889059 | 1028.7 | 1327.15 | 95.25 | 3.3 | ||||
| XR889060 | 1028.7 | 1327.15 | 114.3 | 3.3 | ||||
| 1270 | 1524 | 95.25 | 1.8 | 615897A | ||||
| XR897051 | 1549.4 | 1828.8 | 101.6 | 3.3 | 615898A | XD.10.1549P5 | ||
| XR903054 | 1879.6 | 2197.1 | 101.6 | 5.4 | 615899A | |||
| 2463.8 | 2819.4 | 114.3 | 5.4 | 634078A | ||||
