當前位置：Home > 產品中心 > 轉盤軸承（回轉支承） > 四點接觸球式回轉支承 > 四點接觸球-Kaydon標準

MTO-050
MTO-050T
MTO-065
MTO-065T
MTO-122
MTO-122T
MTO-143
MTO-143T
MTO-145
MTO-145T

產品特點

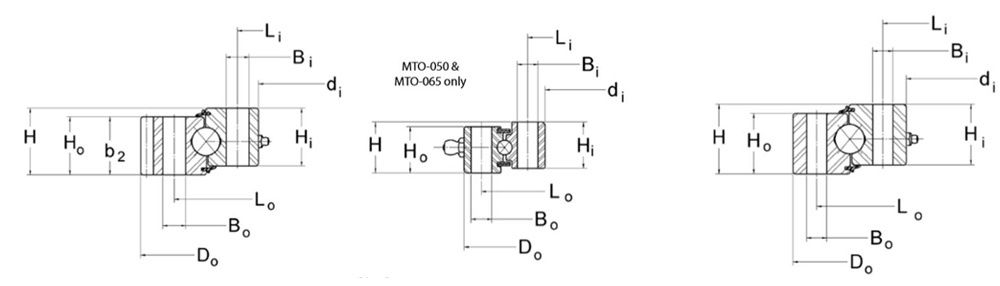

結構圖
規格

MT系列回轉支承軸承具有矩形截面，尺寸范圍為4-47英寸(100-1200毫米)。軸承內部結構包括深溝滾道和最大尺寸的滾珠。這種結構使該系列能夠承受比一般四點接觸球軸承更高的力矩、推力和徑向負載。軸承凹槽上有更大尺寸的完美密封和非接觸式防塵蓋,對阻擋污染物有一定作用。這種設計使該系列產品在從輕載到重載的許多應用環境中都有良好的表現。 MT系列軸承可提供無齒型MTO和外齒型MTE。該列MTE324以下采用雙漸開線短齒齒輪,更大的型號采用漸開線短齒齒輪。型號末尾帶有“T”后綴的,帶有螺紋安裝孔。螺紋深度至少是名義孔徑的1.5倍。型號末尾帶有“X”后綴的，具有更強的承載能力。

軸承型號	外型尺寸				安裝孔尺寸						額定力矩	重量
	外型尺寸				外圈			內圈			額定力矩	Weight
	Do	di	H	Hi/Ho	Lo	Bo	QTY	Li	Bi	QTY	ft-lbs	kg
MTO-050	110.0074	49.9872	19.9898	18.4912	96.9772	6.6	8	62.992	6.6	8	675	0.907184
MTO-050T	110.0074	49.9872	19.9898	18.4912	96.9772	M6	8	62.992	M6	8	675	0.907184
MTO-065	135.001	64.9986	21.9964	19.9898	119.9896	9	8	79.9846	9	8	1075	1.814368
MTO-065T	135.001	64.9986	21.9964	19.9898	119.9896	M8	8	79.9846	M8	8	1075	1.814368
MTO-122	226.0092	121.9962	34.0106	29.0068	208.0006	9	12	140.0048	9	12	5020	5.896696
MTO-122T	226.0092	121.9962	34.0106	29.0068	208.0006	M8	12	140.0048	M8	12	5020	5.896696
MTO-143	248.9962	143.002	34.0106	29.0068	226.9998	11	12	164.9984	11	12	8950	6.80388
MTO-143T	248.9962	143.002	34.0106	29.0068	226.9998	M10	12	164.9984	M10	12	8950	6.80388
MTO-145	299.9994	145.0086	49.9872	43.9928	270.002	14	16	175.006	14	16	26000	16.782904
MTO-145T	299.9994	145.0086	49.9872	43.9928	270.002	5/8-11	16	175.006	5/8-11	16	26000	16.782904
MTO-145X	312.0644	145.0086	49.9872	43.9928	270.002	15	16	175.006	15	16	30600	18.597272
MTO-145XT	312.0644	145.0086	49.9872	43.9928	270.002	9/16-12 UNC	16	175.006	9/16-12 UNC	16	30600	18.597272
MTO-170	310.007	170.0022	45.9994	40.9956	280.0096	13	12	199.9996	13	12	16520	14.968536
MTO-170T	310.007	170.0022	45.9994	40.9956	280.0096	M12	12	199.9996	M12	12	16520	14.968536
MTO-210	364.998	210.0072	40.005	37.9984	335.026	14	16	240.0046	14	20	44500	17.236496
MTO-210T	364.998	210.0072	40.005	37.9984	335.026	5/8-11	16	240.0046	5/8-11	20	44500	17.236496
MTO-210X	373.0244	210.0072	49.9872	43.9928	335.026	15	16	240.0046	15	20	52100	21.772416
MTO-210XT	373.0244	210.0072	49.9872	43.9928	335.026	9/16-12 UNC	16	240.0046	9/16-12 UNC	20	52100	21.772416
MTO-265	419.989	264.9982	49.9872	43.9928	389.9916	14	18	294.9956	14	24	62000	24.493968
MTO-265T	419.989	264.9982	49.9872	43.9928	389.9916	5/8-11	18	294.9956	5/8-11	24	62000	24.493968
MTO-265X	433.9844	264.9982	49.9872	43.9928	389.9916	15	18	294.9956	15	24	71900	27.669112
MTO-265XT	433.9844	264.9982	49.9872	43.9928	389.9916	9/16-12 UNC	18	294.9956	9/16-12 UNC	24	71900	27.669112
MTO-324T	520.3444	323.85	52.3748	51.3588	479.425	5/8-11	20	365.125	5/8-11	20	102400	47.62716
MTO-324X	520.3444	324.358	60.325	52.4002	479.425	17.5	20	365.125	17.5	20	102400	47.62716
MTO-415	626.11	412.75	60.325	52.4002	565.15	20.7	16	450.85	20.7	20	159000	65.77084
MTO-415T	626.11	412.75	60.325	52.4002	565.15	3/4-10 UNC	16	450.85	3/4-10 UNC	20	159000	65.77084
MTO-470	683.26	469.9	60.325	52.4002	622.3	20.7	18	508	20.7	24	188000	70.30676
MTO-470T	683.26	469.9	60.325	52.4002	622.3	3/4-10 UNC	18	508	3/4-10 UNC	24	188000	70.30676
MTO-540	753.11	539.75	60.325	52.4002	692.15	20.7	24	577.85	20.7	28	232000	81.64656
MTO-540T	753.11	539.75	60.325	52.4002	692.15	3/4-10 UNC	24	577.85	3/4-10 UNC	28	232000	81.64656
MTO-590	851.7636	587.375	73.025	65.1002	777.875	24	18	631.825	24	24	338000	138.34556
MTO-590T	851.7636	587.375	73.025	65.1002	777.875	7/8-9 UNC	18	631.825	7/8-9 UNC	24	338000	138.34556
MTO-705	970.3054	704.85	73.025	65.1002	895.35	24	24	749.3	24	28.28	443000	158.7572
MTO-705T	970.3054	704.85	73.025	65.1002	895.35	7/8-9 UNC	24	749.3	7/8-9 UNC	28	443000	158.7572
MTO-730	1062.99	730.25	82.55	73.152	965.2	27	20	787.4	27	24	587000	240.40376
MTO-730T	1062.99	730.25	82.55	73.152	965.2	1-8 UNC	20	787.4	1-8 UNC	24	587000	240.40376
MTO-870	1205.0776	869.95	107.95	98.425	1114.425	30	24	920.75	30	28	873000	378.74932
MTO-870T	1205.0776	869.95	107.95	98.425	1114.425	11-8 UNC	24	920.75	11-8 UNC	28	873000	378.74932
MTE-145	312.0644	43.9928	0.562	270.002	16	175.006	0.562	16	FS	12	5/7	17.236496
MTE-145T	312.0644	43.9928	5/8-11	270.002	16	175.006	5/8-11	16	FS	12	5/7	17.236496
MTE-145X	312.0644	43.9928	0.594	270.002	16	175.006	0.594	16	FS	12	5/7	17.236496
MTE-210	373.0244	37.9984	0.562	335.026	16	240.0046	0.562	20	FS	14.4	5/7	17.236496
MTE-210T	373.0244	37.9984	5/8-11	335.026	16	240.0046	5/8-11	20	FS	14.4	5/7	17.236496
MTE-210X	373.0244	43.9928	0.594	335.026	16	240.0046	0.594	20	FS	14.4	5/7	19.958048
MTE-265	433.9844	43.9928	0.562	389.9916	18	294.9956	0.562	24	FS	16.8	5/7	25.854744
MTE-265T	433.9844	43.9928	5/8-11	389.9916	18	294.9956	5/8-11	24	FS	16.8	5/7	25.854744
MTE-265X	433.9844	43.9928	0.594	389.9916	18	295.2496	0.594	24	FS	16.8	5/7	25.854744
MTE-324T	520.3444	51.3588	5/8-11	479.425	20	365.125	5/8-11	20	FS	20.2	5/7	44.452016
MTE-324X	520.3444	52.4002	0.688	479.425	20	365.125	0.688	20	FS	20.2	5/7	44.905608
MTE-415	626.11	52.4002	0.813	565.15	16	450.85	0.813	20	SD	24.25	4	59.874144
MTE-415T	626.11	52.4002	3/4-10	565.15	16	450.85	3/4-10	20	SD	24.25	4	59.874144
MTE-470	683.26	52.4002	0.813	622.3	18	508	0.813	24	SD	26.5	4	66.678024
MTE-470T	683.26	52.4002	3/4-10	622.3	18	508	3/4-10	24	SD	26.5	4	66.678024
MTE-540	753.11	52.4002	0.813	692.15	24	577.85	0.813	28	SD	29.25	4	73.935496
MTE-540T	753.11	52.4002	3/4-10	692.15	24	577.85	3/4-10	28	SD	29.25	4	73.935496
MTE-590	851.7636	65.1002	0.938	777.875	18	631.825	0.938	24	SD	33	3	128.366536
MTE-590T	851.7636	65.1002	7/8-9	777.875	18	631.825	7/8-9	24	SD	33	3	128.366536
MTE-705	970.3054	65.1002	0.938	895.35	24	749.3	0.938	28	SD	37.667	3	147.4174
MTE-705T	970.3054	65.1002	7/8-9	895.35	24	749.3	7/8-9	28	SD	37.667	3	147.4174
MTE-730	1062.99	73.152	1.063	965.2	20	787.4	1.063	24	SD	41.2	2.5	222.713672
MTE-730T	1062.99	73.152	1-8	965.2	20	787.4	1-8	24	SD	41.2	2.5	222.713672
MTE-870	1205.0776	98.425	1.188	1114.425	24	920.75	1.188	28	SD	46.8	2.5	349.719432
MTE-870T	1205.0776	98.425	11/8-7	1114.425	24	920.75	11/8-7	28	SD	46.8	2.5	349.719432
