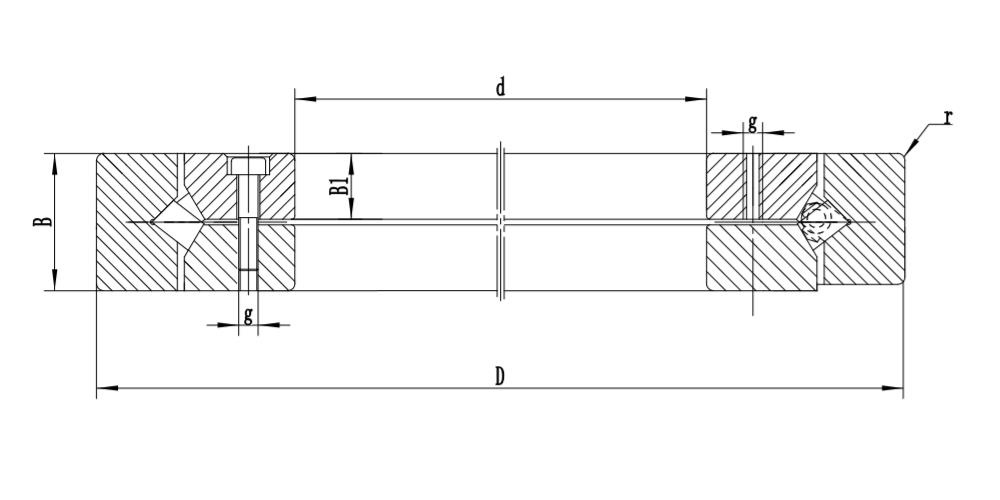

| 型號 | 尺寸 | 安裝尺寸 | 基本額定載荷 | 極限轉速 | 重量 | |||||||||
| d | D | B | B1 | r (min.) |
g | D1 (min.) |
D2 (max.) |
ra (max.) |
動載荷 | 靜載荷 | 脂 | 油 | ||
| C | Co | |||||||||||||
| mm | mm | kN | r/min | kg | ||||||||||
| Z-549800 | 203.2 | 279.4 | 31.75 | 14.475 | 1.5 | - | 233 | 253 | 1.5 | 116 | 430 | 450 | 900 | 6.1 |
| Z-549801 | 300 | 400 | 38 | 17.25 | 1.5 | - | 343 | 367 | 1.5 | 190 | 815 | 300 | 630 | 14 |
| Z-549802 | 330.2 | 457.2 | 63.5 | 29.825 | 4 | - | 383 | 417 | 3 | 320 | 1320 | 280 | 560 | 33 |
| Z-549803 | 380 | 520 | 65 | 30.05 | 4 | - | 437 | 477 | 3 | 455 | 1860 | 260 | 530 | 43 |
| Z-549804 | 414.95 | 614.924 | 65 | 30.05 | 4 | M8 | 500 | 540 | 3 | 490 | 2160 | 220 | 450 | 70 |
| Z-549805 | 457.2 | 609.6 | 63.5 | 29.3 | 4 | - | 521 | 562 | 3 | 500 | 2280 | 220 | 430 | 54 |
| Z-549806 | 580 | 760 | 80 | 37 | 6 | M10 | 654 | 704 | 5 | 735 | 3550 | 180 | 360 | 101 |
| Z-549807 | 685.8 | 914.4 | 79.375 | 36.688 | 4 | M10 | 784 | 839 | 3 | 930 | 4750 | 150 | 300 | 152 |
| Z-549808 | 740 | 940 | 85 | 39.5 | 5 | M10 | 817 | 871 | 4 | 950 | 4900 | 140 | 280 | 150 |
| Z-549809 | 901.7 | 1117.6 | 82.55 | 38.275 | 4 | M12 | 987 | 1041 | 3 | 1060 | 6000 | 110 | 220 | 189 |
| Z-549810 | 1028.7 | 1327.15 | 114.3 | 53.45 | 5 | M16 | 1147 | 1221 | 4 | 1700 | 9300 | 85 | 170 | 420 |
| Z-549811 | 1100 | 1350 | 95 | 43.8 | 4 | M16 | 1207 | 1268 | 3 | 1370 | 8150 | 80 | 160 | 305 |
| Z-549812 | 1270 | 1524 | 95.25 | 43.925 | 4 | M16 | 1379 | 1440 | 3 | 1460 | 9300 | 67 | 130 | 354 |
| Z-549813 | 1340 | 1600 | 100 | 46.3 | 4 | M16 | 1449 | 1517 | 3 | 1760 | 11000 | 60 | 120 | 400 |
| Z-549814 | 1384.3 | 1651 | 98.425 | 45.513 | 4 | M16 | 1500 | 1562 | 3 | 1530 | 10200 | 60 | 120 | 418 |
| Z-549815 | 1549.4 | 1828.8 | 101.6 | 47.1 | 4 | M16 | 1669 | 1737 | 3 | 1900 | 12700 | 45 | 90 | 503 |
| Z-549816 | 1580 | 1870 | 110 | 51.3 | 4 | M16 | 1697 | 1768 | 3 | 2080 | 14000 | 48 | 95 | 573 |
| Z-549817 | 1749.872 | 2219.874 | 190 | 89.4 | 7.5 | M24 | 1933 | 2055 | 6 | 4500 | 27000 | 60 | 120 | 1850 |
| Z-549818 | 1879.6 | 2197.1 | 101.6 | 47.1 | 6 | M16 | 1933 | 2088 | 5 | 2080 | 15600 | 36 | 70 | 689 |
| Z-549819 | 2100 | 2430 | 120 | 55.8 | 6 | M20 | 2241 | 2322 | 5 | 2850 | 20800 | 34 | 70 | 940 |
| Z-549820 | 2463.8 | 2819.4 | 114.3 | 53.45 | 6 | M20 | 2612 | 2686 | 5 | 2600 | 21200 | 28 | 56 | 1125 |
| Z-549821 | 3000 | 3380 | 130 | 60.8 | 6 | M24 | 3165 | 3252 | 5 | 3600 | 31000 | 24 | 48 | 1652 |
| Z-549822 | 3500 | 3920 | 140 | 65.45 | 6 | M30 | 3685 | 3777 | 5 | 4250 | 38000 | 20 | 43 | 2286 |
| Z-549823 | 4000 | 4460 | 155 | 72.95 | 6 | M30 | 4202 | 4304 | 5 | 5300 | 49000 | 19 | 38 | 3161 |
