當前位置：Home > 產品中心 > 精密交叉滾子軸承 > HIWIN標準交叉圓柱滾子軸承 > CRBE系列交叉滾子軸承

CRBE 02012 A
CRBE 03515 A
CRBE 05515 A
CRBE 08022 A
CRBE 08022 B
CRBE 08022 C
CRBE 09025 A
CRBE 09025 B
CRBE 09025 C
CRBE 11528 A

產品特點
結構圖
規格

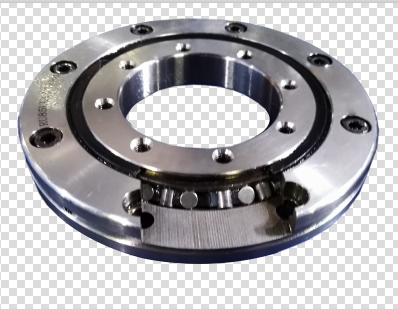

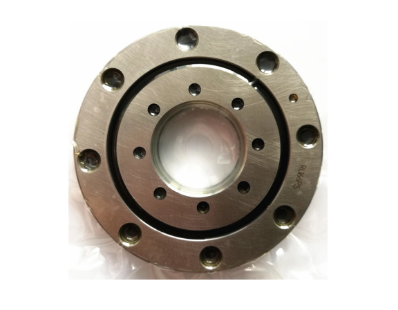

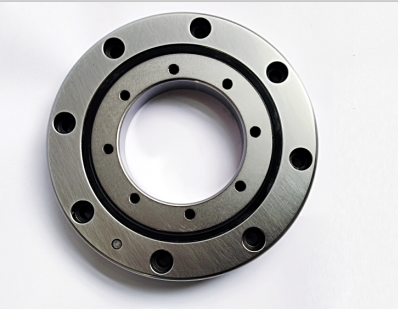

CRBE 系列: 帶法蘭孔高鋼性，由帶有法蘭孔的一個內環和一個外環組成，因為已有法蘭孔，可以直接安裝使用，適用于內環或者外環旋轉。

型號	尺寸 (mm)					安裝孔尺寸 (mm)				基本額定載荷 (kN)		靠肩尺寸(mm)
	內徑 (d)	外徑 (D)	寬度 (B, T)	倒角 (r min)	油孔 d OH	內圈		外圈		動載荷, C	靜載荷 C0???	da??	???? Da
	內徑 (d)	外徑 (D)	寬度 (B, T)	倒角 (r min)	油孔 d OH	PCD1	安裝孔	?PCD2	安裝孔	動載荷, C	靜載荷 C0???	da??	???? Da
CRBE 02012 A	20	70	12	0.6	3	28	6-M3 through	57	6-?3.4 through?6.5 counter bore depth 3.3	8.26	9.16	35	47
CRBE 03515 A	35	95	15	0.6	3	45	8-M4 through	83	8-?4.5 through ?8 counter bore depth 4.4	18.9	23.4	57	73
CRBE 05515 A	55	120	15	0.6	3	65	8-M5 through	105	8-?5.5 through ?9.5 counter bore depth 5.4	21.7	30.6	77	92
CRBE 08022 A	80	165	22	1	3	97	10-M5 through	148	10-?5.5 through ?9.5 counter bore depth 5.4	40.4	63.6	117	132
CRBE 08022 B	80	165	22	1	3	97	10-?5.5 through?9.5 counter bore depth 5.4	148	10-?5.5 through ?9.5 counter bore depth 5.4	40.4	63.6	117	132
CRBE 08022 C	80	165	22	1	3	97	10-?5.5 through?9.5 counter bore depth 5.4	97	10-?5.5 through ?9.5 counter bore depth 5.4	40.4	63.6	117	132
CRBE 09025 A	90	210	25	1.5	3	112	12-M8 through	187	12-?9 through ?14 counter bore depth 8.6	46	80.2	139	157
CRBE 09025 B	90	210	25	1.5	3	112	12-?9 through ?14 counter bore depth 8.6	187	12-?9 through ?14 counter bore depth 8.6	46	80.2	139	157
CRBE 09025 C	90	210	25	1.5	3	112	12-?9 through ?14 counter bore depth 8.6	187	12-?9 through ?14 counter bore depth 8.6	46	80.2	139	157
CRBE 11528 A	115	240	28	1.5	3	139	12-M8 through	217	12-?9 through ?14 counter bore depth 8.6	73.1	131.9	168	188
CRBE 11528 B	115	240	28	1.5	3	139	12-?9 through ?14 counter bore depth 8.6	217	12-?9 through ?14 counter bore depth 8.6	73.1	131.9	168	188
CRBE 11528 C	115	240	28	1.5	3	139	12-?9 through ?14 counter bore depth 8.6	217	12-?9 through ?14 counter bore depth 8.6	73.1	131.9	168	188
CRBE 16035 A	160	295	35	2	6	184	12-M10 through	270	12-?11 through ?17.5 counter bore depth 10.8	102	192.3	218	238
CRBE 16035 B	160	295	35	2	6	184	12-?11 through ?17.5 counter bore depth 10.8	270	12-?11 through ?17.5 counter bore depth 10.8	102	192.3	218	238
CRBE 16035 C	160	295	35	2	6	184	12-?11 through ?17.5 counter bore depth 10.8	270	12-?11 through ?17.5 counter bore depth 10.8	102	192.3	218	238
CRBE 21040 A	210	380	40	2.5	6	240	16-M12 through	350	16-?14 through ?20 counter bore depth 13	142	286.2	277	299
CRBE 21040 B	210	295	35	2	6	240	16-?14 through ?20 counter bore depth 13	350	16-?14 through ?20 counter bore depth 13	142	286.2	277	299
CRBE 21040 C	210	295	35	2	6	240	16-?14 through ?20 counter bore depth 13	350	16-?14 through ?20 counter bore depth 13	142	286.2	277	299
